Siemens G120 PM240-2 55KW 75HP Drive

177000 INR/Number

Get a Price/Quote

Product Details:

Product Type Siemens AC Drive
Application Automation
Output Type Number of phases 3 AC
Dimension (L*W*H) Width 275 mm (10.83 in), Height 551 mm (21.69 in), Depth 237 mm (9.33 in) Millimeter (mm)
Weight 26.00 kg (57.32 lb) Kilograms (kg)
Warranty 1 year from date of invoice
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Siemens G120 PM240-2 55KW 75HP Drive Price And Quantity

Price 177000 INR/Number
Minimum Order Quantity 1 Number

Siemens G120 PM240-2 55KW 75HP Drive Product Specifications

Output Type Number of phases 3 AC
Dimension (L*W*H) Width 275 mm (10.83 in), Height 551 mm (21.69 in), Depth 237 mm (9.33 in) Millimeter (mm)
Product Type Siemens AC Drive
Warranty 1 year from date of invoice
Weight 26.00 kg (57.32 lb) Kilograms (kg)
Application Automation

Siemens G120 PM240-2 55KW 75HP Drive Trade Information

Payment Terms Paypal Cash in Advance (CID) Cheque Cash Advance (CA)
Supply Ability 100 Number Per Week
Delivery Time 1 Days
Main Domestic Market All India
Certifications Compliance with standards UL, cUL, CE, C-Tick (RCM), SEMI F47 CE marking Low-voltage directive 2006/95/EC

Product Description

NAKSH TECHNOLOGY We are supplier of Siemens Sinamics G120. The CU controls and monitors the PM and the connected motor in several operating modes that can be selected. It supports communications to a local control as well as to monitoring devices and equipment. Typical Uses sinamics G120 is especially suitable as universal drive in the whole of industry and the trades, in sectors such as auto mobile, textiles, printing, chemical as well as in general higher-level applications in conveyor systems.

Specifications:

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Siemens AC Drive' category

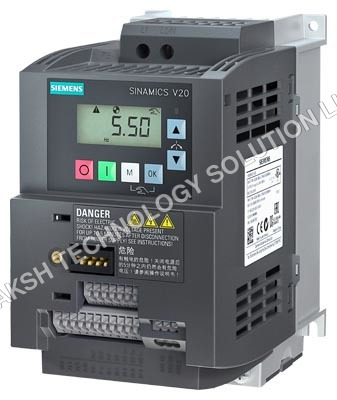

SIEMENS V20 0.37KW 0.50HP DRIVE Price : 6000 INR/Number Minimum Order Quantity : 1 Warranty : 1 year from date of invoice Application : Automation Product Type : Siemens AC Drive Weight : 0.70 kg ( 1.54 lb ) Kilograms (kg) Dimension (L*W*H) : Width 68.0 mm ( 2.68 in ), Height 142.0 mm ( 5.59 in ), Depth 107.8 mm ( 4.24 in ) Millimeter (mm) Rated Voltage : Rated voltage 230 V, Line voltage 200 ... 240 V 15 % +10 % Volt (V) Frequency (MHz) : Pulse frequency 8.00 kHz, Output frequency 0 ... 550 Hz, Line frequency Kilohertz ( KHZ )
